Use range:
Pressure: 221B absolute pressure 9.87*10-2~ gauge pressure 1.6MPA Temperature: inside the sealed cavity ≤ 80 ℃, inside the reactor -20~200 ℃ (for glass-lined reactor)
Linear speed: 2m/s Working conditions: flammable, explosive, toxic, strong corrosive gas

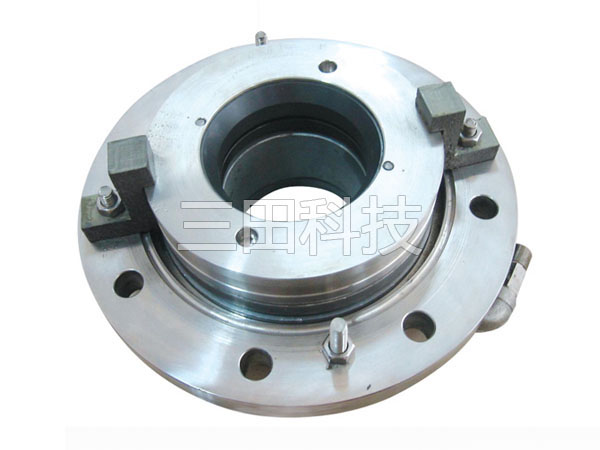

Structural features:
The installation size complies with HG2057-2003 "Mechanical Seal for Glass- lined Stirring Vessel" and HG/T2052-91 " Glass- lined Equipment Transmission Device".
This product has a radial double-end and a static structure. Due to the isolation air flow (sealing liquid) flowing into the sealed cavity, the pressure is higher than the pressure of the medium in the reactor, thereby preventing the medium from leaking. This structure in the case of a large swing of the stirring shaft still guarantees a good seal, and is suitable for glass-lined and various corrosion-resistant stirring shaft seals.
